Parameters
- Dielectric strengthmin. 60 kV/mm
- The active substance content50 % methyl-phenyl-silicone resin
- Thermal resistance250 - 300 °C (500–600 °C in coating systems)
- Viscosity80 - 150 mPa.s
- Appearanceclear, yellowish liquid immiscible with water

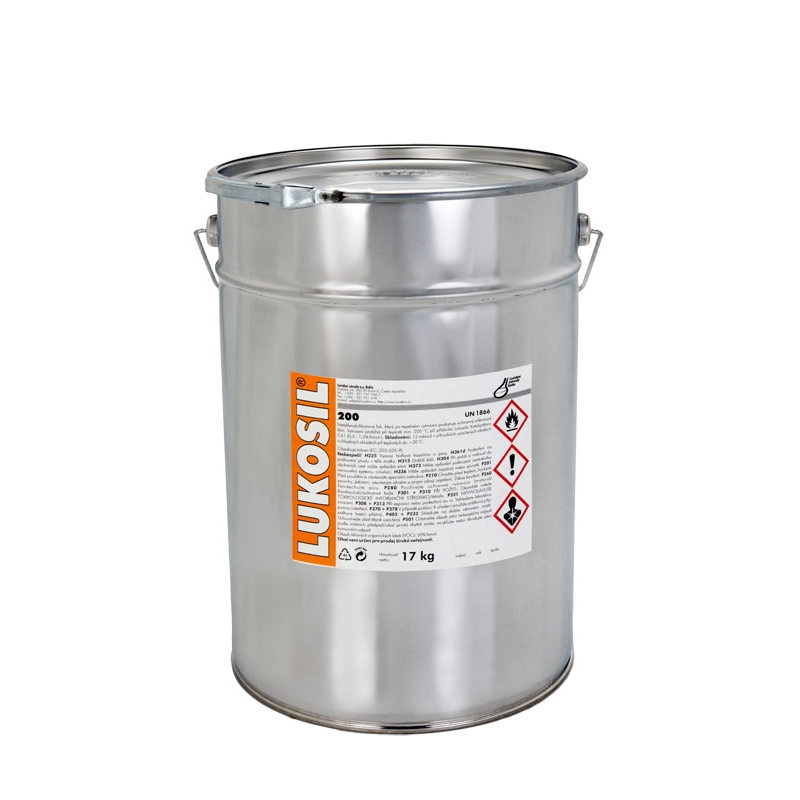

Silicone Varnish for Coating Systems and Electrical Insulation
-
Binder for the production of high-temperature resistant coating materials
by adding fillers, coating systems for metal surfaces with a resistance of 500 - 600 °C can be prepared (base and top firing enamels) -
Modification additive for other organic binders (silicone-acrylic coatings)
provides hydrophobicity, increased chemical, UV, and weather resistance - clear, thin-layer electrical insulating impregnating varnish
electrical insulating varnish for electrical equipment operating in light and thermally demanding conditions
chemically inert, non-corrosive to the substrate (after solvent evaporation)
forms a softer and more flexible film than Lukosil 150X
application by spraying, brushing, dipping
dilution with toluene, xylene, gasoline
thermal curing above 200 °C
shortening of curing time is possible by using the addition of Lukosil Catalyst C 61
Hazard warning
Danger
Highly flammable liquid and vapor. Causes skin irritation. May cause drowsiness or dizziness. Suspected of damaging the unborn child through inhalation. May cause damage to the central nervous system through prolonged or repeated inhalation exposure. Always follow the information on the product label.
